Our Shop drawings / Installation drawings facilitate workshop fabrication and
on-site installation and are generated automatically from the HVAC Models. We create Shop Drawings in accordance with the project standards.

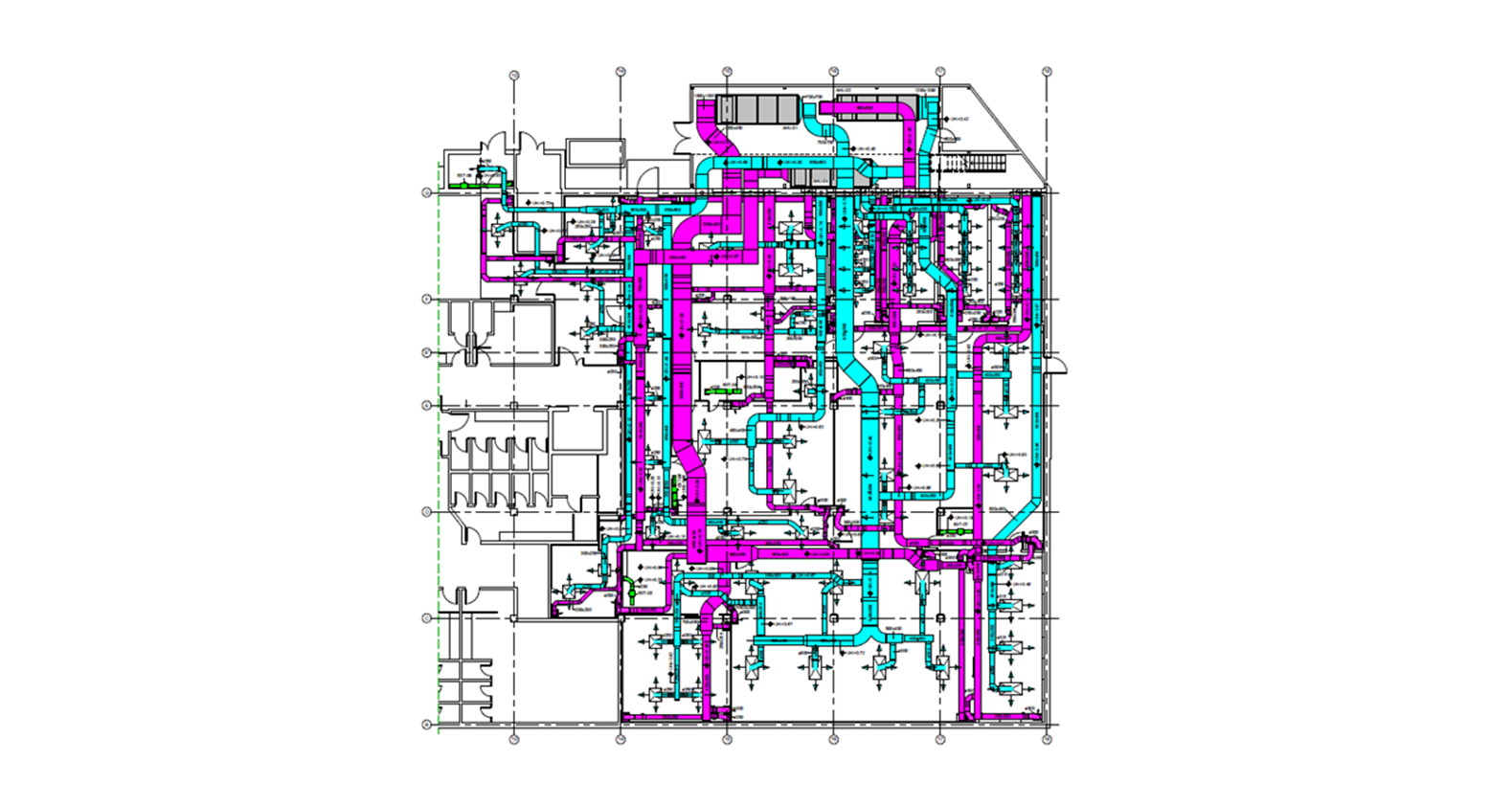

HVAC Shop Drawings
We make duct shop drawings according to SMACNA standards with essential linings and insulation thickness.
We ensure coordination between other disciplines Mechanical, Piping, Plumbing and Sprinklers.
Piping Shop Drawings
We create Mechanical & Plumbing shop drawings in accordance with contract drawings and revise them as per site survey notes.
